PRTG Manual: SNMP Hardware Status Sensor

The SNMP Hardware Status sensor monitors the status of a server's hardware component via the Simple Network Management Protocol (SNMP).

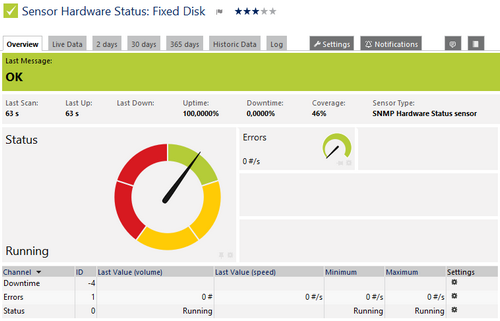

SNMP Hardware Status Sensor

For a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

Dutch: SNMP Hardware Status
French: Statut matériel (SNMP)
German: SNMP Hardwarezustand
Japanese: SNMP ハードウェア正常性
Portuguese: Status do hardware (SNMP)
Russian: Статус оборудования по SNMP
Simplified Chinese: SNMP 硬件状态
Spanish: Estado de hardware (SNMP)

Remarks

This sensor supports IPv6.

This sensor has a very low performance impact.

This sensor uses lookups to determine the status values of one or more channels.

It might not work to query data from a probe device via SNMP (querying localhost, 127.0.0.1, or ::1). Add this device with the IP address that it has in your network and create the sensor on this device instead.

Basic Sensor Settings

Setting	Description
Sensor Name	Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets. If the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?
Parent Tags	The tags that the sensor inherits from its parent device, parent group, and parent probe. This setting is for your information only. You cannot change it.
Tags	Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited. It is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>). For performance reasons, it can take some minutes until you can filter for new tags that you added. The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor: hardwarestatus
Priority	Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority () to the highest priority ().

Hardware Specific

Setting	Description
Hardware Components	The hardware component that this sensor monitors.
Product ID	The product ID of the hardware component that this sensor monitors.
Description	The description of the hardware component that this sensor monitors.
Type	The type of the hardware component that this sensor monitors.

Sensor Display

Setting	Description
Primary Channel	Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor. You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.
Graph Type	Define how different channels are shown for this sensor: Show channels independently (default): Show a graph for each channel. Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic. You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).
Stack Unit	This setting is only visible if you enable Stack channels on top of each other as Graph Type. Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

Show channels independently (default): Show a graph for each channel.
Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you enable Stack channels on top of each other as Graph Type. Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click under the corresponding setting name to disable the inheritance and to display its options.

For more information, see section Inheritance of Settings.

Scanning Interval

For more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

You cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

For more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window.

Access Rights

For more information, see section Root Group Settings, section Access Rights.

Channel List

Which channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel	Description
Downtime	In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status
Errors	The number of errors
Status	The hardware component status Up status: Running Warning status: Warning, Testing Down status: Down, Unknown This channel is the primary channel by default.

Channel

Description

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status

Errors

The number of errors

Status

The hardware component status
