How to move a PRTG installation
to a different computer in 9 steps



This how-to guide explains how to move or migrate a PRTG installation from an old to a new server. The server can be a virtual machine or a physical machine. The following steps are valid

  • if you use the default path for storing PRTG data,
  • if you do not run PRTG in a cluster,
  • if you do not have remote probes,
  • if you have direct internet access, which you need for license activation,
  • if you run a supported Windows version that is up to date, and
  • if you have the latest .NET version installed.


Before you start the migration



1. Check your PRTG and Windows version

To migrate a PRTG installation successfully, make sure that you install the same PRTG version on your old and new system.

You may need to run an update of the old system to the latest PRTG version first.

If you migrate PRTG from a 32-bit system to a different 32-bit system, or from a 64-bit system to a 64-bit system, you can immediately jump to the 9-step guide.

For a migration from a 32-bit system to a 64-bit system, or vice versa, please follow these steps:

  • Open the Windows registry editor and manually modify the registry keys: (re)move the Paessler branch from or to the Wow6432Node node.

Note: It is important that you back up your system before manipulating the Windows registry!

2. Check your credentials for the PRTG core server service and
the PRTG probe service

On the new system, check the login credentials for the PRTG core server service and the PRTG probe service. Be sure to use the same account for both services as on the old system. If you used individual credentials, the following steps are necessary:

  1. Go to Services in the Windows Administrative Tools.
  2. Open Properties of the PRTG Core Server Service and/or the PRTG Probe Service.
  3. Go to section Log On and choose between Local System account or This account and add the account you want to use.

Note: The PRTG core server service and the PRTG probe service run under the Local System account by default. This might result in issues with script sensors, because in some cases, the Local System account does not have access to the network or other systems. Please use an account with the required permissions.



Short migration guide in 9 steps



After you prepared the migration, you can now move PRTG from the old to the new server. Take the following steps:




Step 1

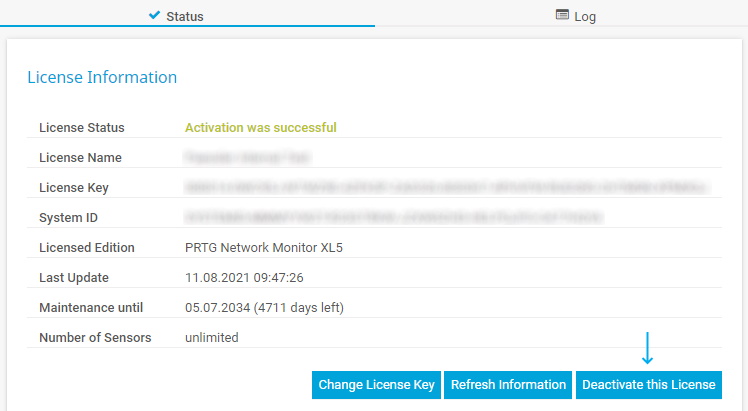

On your original server, go to the PRTG web interface and deactivate your PRTG license under Setup | License. Otherwise, you cannot activate the license on the new server. Your old server will still run as a licensed version for 30 days.

Note: The option to manually deactivate the license on a PRTG server via the web interface is available as of PRTG version 16.4.28. For migration of previous PRTG versions, please see detailed guide in our Knowledge Base.



Step 2

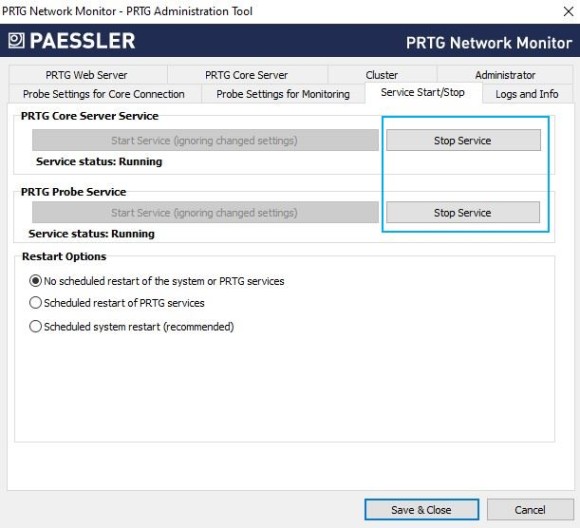

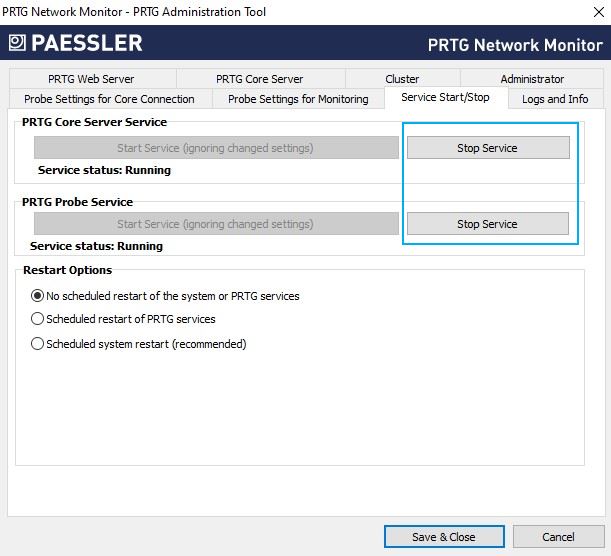

Open the PRTG Administration Tool and stop the PRTG core server service and the PRTG probe service on the old server.



Step 3

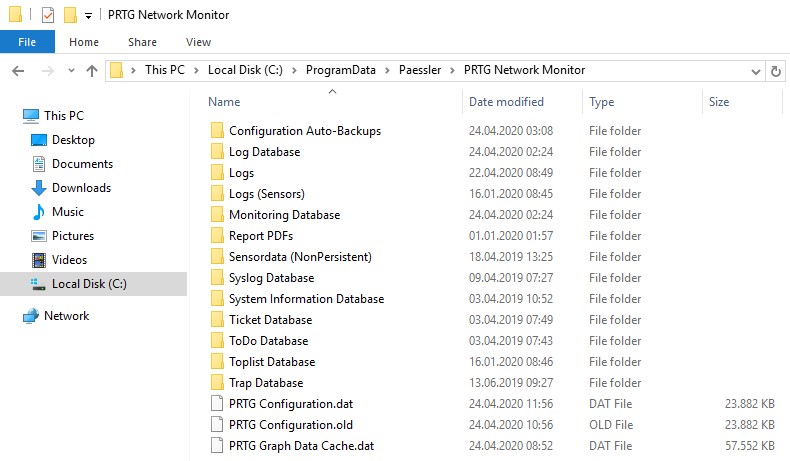

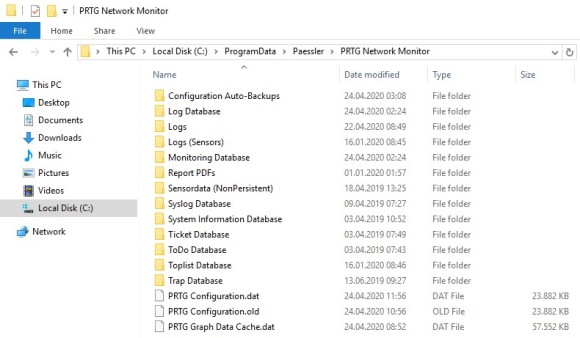

Go to the data directory of your old server and copy the contents of

 %programdata%\Paessler\PRTG Network Monitor


to your new server. Make sure that the file paths match.



Step 4

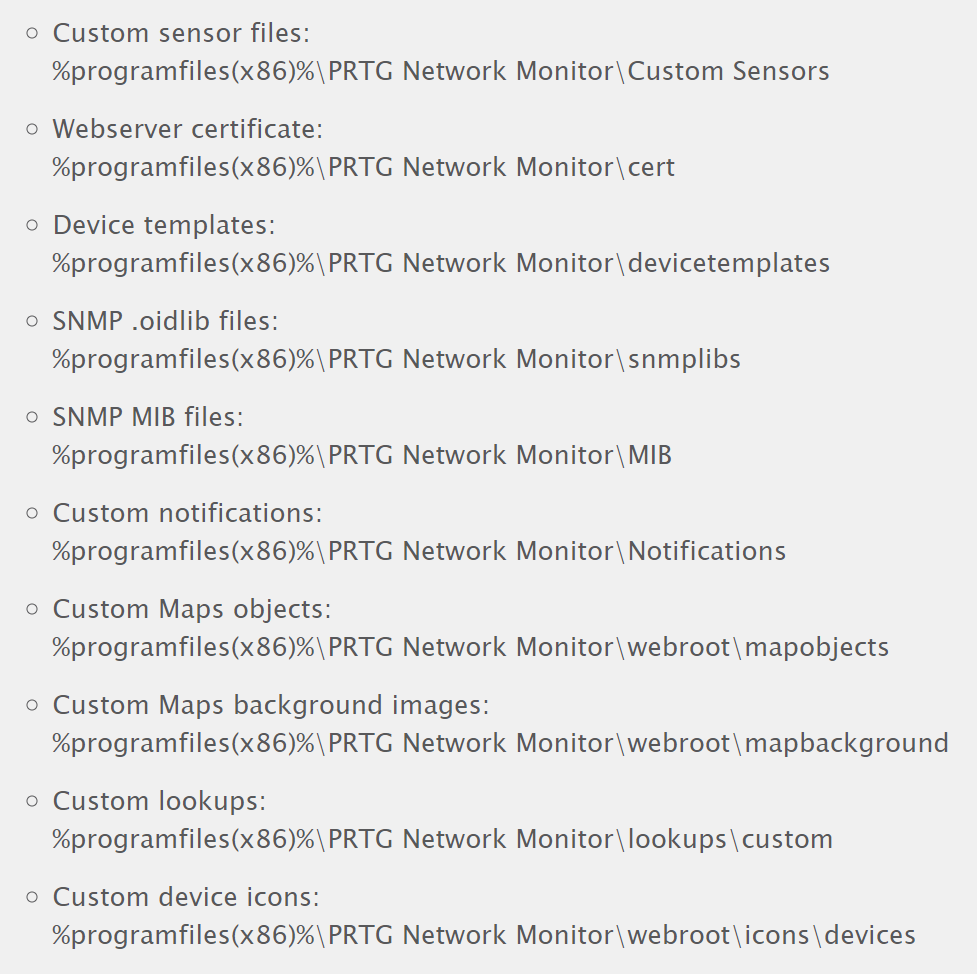

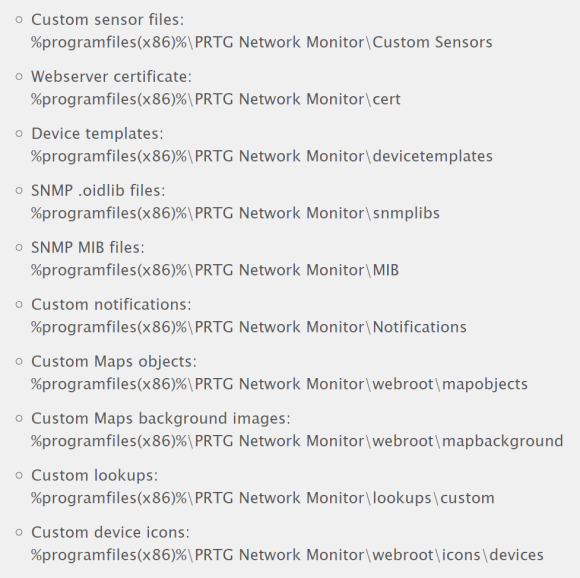

If you use customizations like custom device icons, custom sensors, or certificates, go to the program directory of your old server and copy the respective content to the new server as well.



Step 5

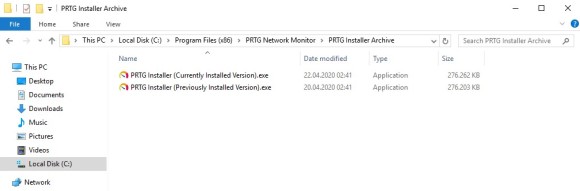

After copying the necessary data, install the same version of PRTG that you run on the old server on the new server using the installer of the old server. By default, this installer is stored in the PRTG program directory:

  • 64-bit systems
 %programfiles(x86)%\PRTG Network Monitor\PRTG Installer Archive



  • 32-bit systems
 %programfiles%\PRTG Network Monitor\PRTG Installer Archive



During the installation you will need your license name and license key.



Step 6

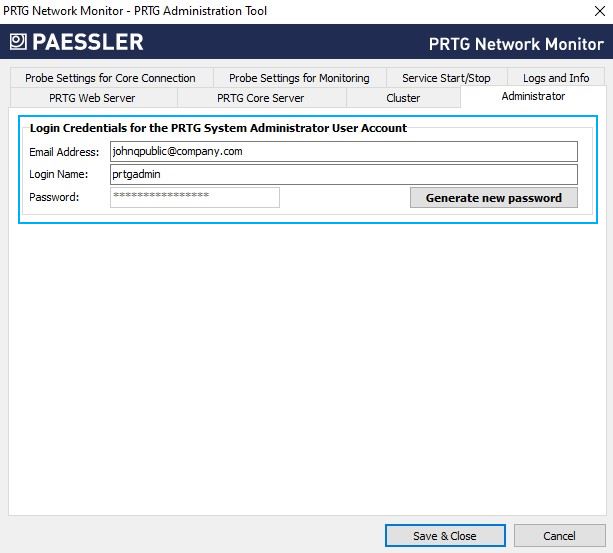

The migration reverts the credentials for the PRTG System Administrator account to the default username and password, prtgadmin.

We strongly recommend to change the credentials in the PRTG Administration Tool of the new server as soon as possible.



Step 7

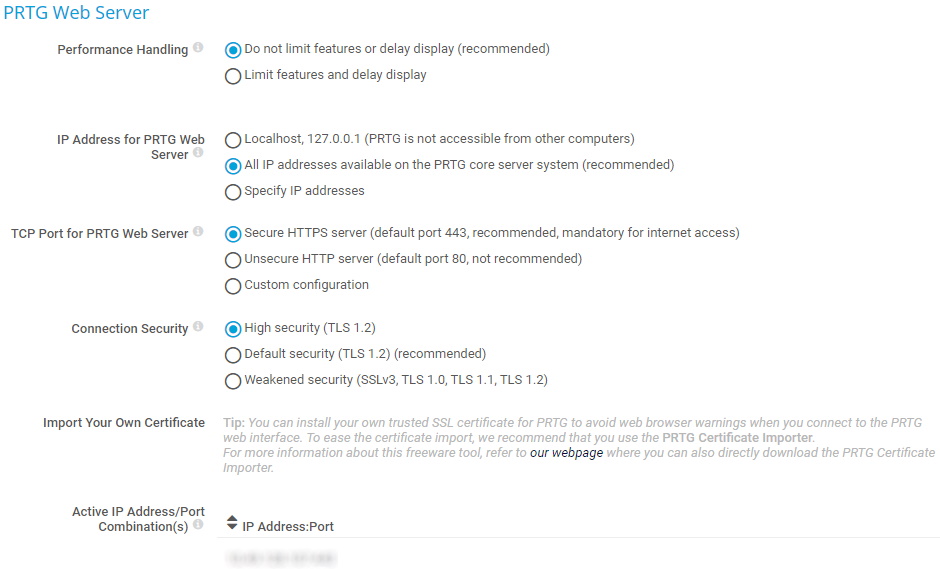

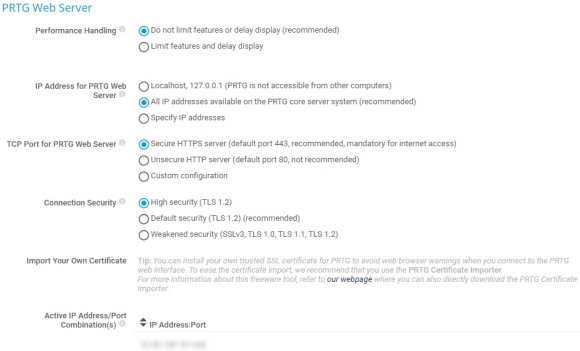

For the web server, check the correctness of the Web Server settings like the selected TCP port and the specified IP addresses.

You can either do this in the PRTG Administration Tool or in the PRTG web interface under Setup | System Administration | User Interface.



Step 8

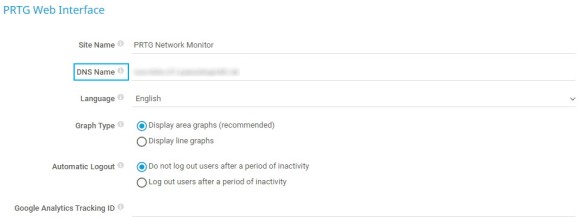

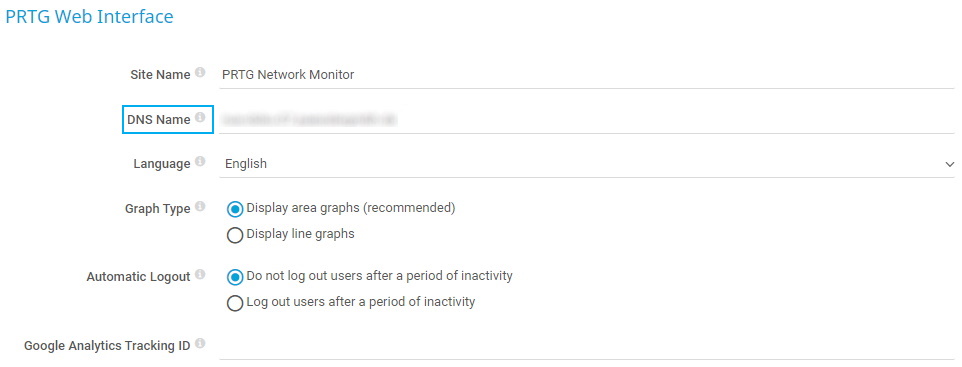

In the PRTG web interface, go to Setup | System Administration | User Interface, section Website.

Enter the DNS Name so that it points to the fully qualified domain name (FQDN) of the new server.



Step 9

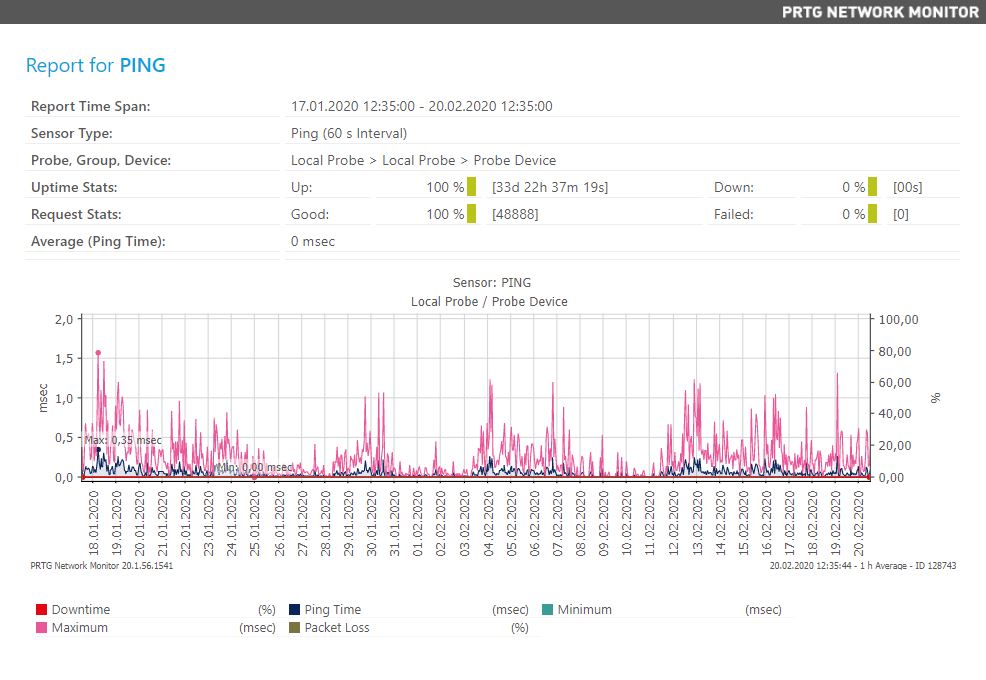

Finally, check whether all your sensors behave as expected. A historic data report might be useful to confirm that all the required historic data is available.

For the report, right-click on a sensor, go to Historic Data | View Historic Data, enter your time period and click Start.



And that’s it! Now you can use PRTG on your new server as usual.

If you need more details or more in-depth information about migrating PRTG, for example, if you run PRTG in a cluster, see our Knowledge Base article.
